SNPX

SNPX is a protocol that allows you to fast read and write data on the robot (registers, variables, alarms, IOs, etc.)

Overview

SNPX (Also known as RobotIF, Robot Interface, or SRTP) allows for quick reading and writing of data on the robot, including:

  • Registers (Position, number, and string)
  • Variables
  • Signals (UI, UO, GI, GO, ...)
  • Clear and read alarms
  • Read the status programs

TCP port Robot IF Server (by default 60008) should be accessible on your controller.

Differences with official Fanuc Robot Interface

Fanuc also provides a Robot Interface client implementation (FRRJIF.DLL) and here are the main differences:

UnderAutomation.Fanuc.dllFRRJIF.DLL
EditorUnderAutomationFanuc Ltd.
Technology100% managed .NET assemblynative ActiveX / COM
PortabilityNo dependencies, the DLL can be moved

Requires installation with a setup program, especially for license management

Read/write command execution time2 ms30 ms
Pricing and conditions

Pay once at an affordable price, forever, with no recurring charges


No matter :

  • how many piece of software you redistribute
  • how many developers you have in your team
  • how many robots you have
  • Pay for developer licenses
  • Then, pay for each runtimes

Contact Fanuc to find out your terms of use

Robot options

To enable SNPX on your robot, you need one of the following option :

  • If R650 FRA params is selected (Option "FANUC America Corp." in "Advanced" tab of ROBOGUIDE "Worcell creation wizard - Step 7 Robot options"), R553 "HMI Device SNPX" is needed.
  • If R651 FRL params is selected (Option "FANUC Ltd." in this "Advanced" tab), no option is needed.

Performances

SNPX is a fast protocol, allowing you to read and write data in less than 2 ms.

Benchmarks show that regardless of the amount of data transported in a command, it takes the same amount of time to execute. For example, you can read 80 position registers or write a variable in a few milliseconds.

This protocol is obviously not real-time or deterministic; execution time depends on the CPU load of your robot controller, network load, and computer performance.

When used on a robot simulated with ROBOGUIDE, execution times of less than 1 ms can even be achieved.

Features

Read current position

Here's how to read the current position of the main robot arm or another group driven by the controller.

Note: The current position is that of the current tool.

World current position

Method CurrentPosition.ReadWorldPosition returns the current position of the robot in the world coordinate system.

using UnderAutomation.Fanuc;
using UnderAutomation.Fanuc.Common;
public class SnpxCurrentWorldPosition
{
static void Main()
{
// Create a new Fanuc robot instance
FanucRobot robot = new FanucRobot();
// Set connection parameters
ConnectionParameters parameters = new ConnectionParameters("192.168.0.1");
parameters.Snpx.Enable = true;
// Connect to the robot
robot.Connect(parameters);
/**/
// Read a current world position
Position worldPosition = robot.Snpx.CurrentPosition.ReadWorldPosition();
// Access the Cartesian position
double x = worldPosition.CartesianPosition.X;
// Access the user tool at this cartesian position
short usertTool = worldPosition.UserTool;
// Access the joint positions
double j1 = worldPosition.JointsPosition.J1;
// Read a current world position of group 2
Position worldPositionG2 = robot.Snpx.CurrentPosition.ReadWorldPosition(2);
/**/
}
}

User frame current position

Method CurrentPosition.ReadUserFramePosition returns the current position of the robot in the specified user frame.

Note: if you use user frame 15, the selected user frame in the pendant is used.

using UnderAutomation.Fanuc;
using UnderAutomation.Fanuc.Common;
public class SnpxCurrentUserFramePosition
{
static void Main()
{
// Create a new Fanuc robot instance
FanucRobot robot = new FanucRobot();
// Set connection parameters
ConnectionParameters parameters = new ConnectionParameters("192.168.0.1");
parameters.Snpx.Enable = true;
// Connect to the robot
robot.Connect(parameters);
/**/
// Read user frame 2 position
Position userFrame = robot.Snpx.CurrentPosition.ReadUserFramePosition(1);
// Access the Cartesian position
double x = userFrame.CartesianPosition.X;
// Access the user tool at this cartesian position
short usertTool = userFrame.UserTool;
// Access the user frame id
short usertFrame = userFrame.UserFrame;
// Access the joint positions
double j1 = userFrame.JointsPosition.J1;
// Read a current world position of group 2
Position userFrameG2 = robot.Snpx.CurrentPosition.ReadWorldPosition(2);
/**/
}
}

Read/write IOs, registers and Variables

You can read and write position registers, numeric registers, string registers, and system variables.

Intermediate objects (NumericRegisters, PositionRegisters, ..., SDI, SO, ..., PositionSystemVariables, ...) contain Read and Write methods that take the ID or name of the data to be read or written as a parameter.

Note 1: For position-type objects, two additional methods are available to specifically write the position in joint or Cartesian coordinates.

Note 2: you can read and write Karel program variables by using the variable name $[KarelProgram]KarelVariable.

using UnderAutomation.Fanuc;
using UnderAutomation.Fanuc.Common;
public class Snpx
{
static void Main()
{
// Create a new Fanuc robot instance
FanucRobot robot = new FanucRobot();
// Set connection parameters
ConnectionParameters parameters = new ConnectionParameters("192.168.0.1");
parameters.Snpx.Enable = true;
// Connect to the robot
robot.Connect(parameters);
/**/
// Read a register
Position posReg1 = robot.Snpx.PositionRegisters.Read(1);
float numReg5 = robot.Snpx.NumericRegisters.Read(5);
string strReg10 = robot.Snpx.StringRegisters.Read(10);
// Write a register
posReg1.CartesianPosition.X = 100;
robot.Snpx.PositionRegisters.Write(1, posReg1);
robot.Snpx.NumericRegisters.Write(2, 123.45f);
robot.Snpx.StringRegisters.Write(3, "Hello, world!");
// Read a variable
int rmtMaster = robot.Snpx.IntegerSystemVariables.Read("$RMT_MASTER");
string lastAlm = robot.Snpx.StringSystemVariables.Read("$ALM_IF.$LAST_ALM");
Position cellFloor = robot.Snpx.PositionSystemVariables.Read("$CELL_FLOOR");
// Write a system variable
robot.Snpx.IntegerSystemVariables.Write("$RMT_MASTER", 1);
robot.Snpx.StringSystemVariables.Write("$ALM_IF.$LAST_ALM", "No alarms");
robot.Snpx.PositionSystemVariables.Write("$CELL_FLOOR", cellFloor);
// Write a Karel program variable
robot.Snpx.IntegerSystemVariables.Write("$[KarelProgram]KarelVariable", 1);
// Read and Write I/O (SDI,SDO,RDI,RDO,UI,UO,SI,SO,WI,WO,WSI,PMC_K,PMC_R)
robot.Snpx.RDO.Write(1, true);
ushort ai5 = robot.Snpx.AI.Read(5);
// Read and Write analogs (AI,AO,GI,GO,PMC_D)
robot.Snpx.AO.Write(2, 5);
ushort ao3 = robot.Snpx.AO.Read(3);
// Clear alarms
robot.Snpx.ClearAlarms();
/**/
}
}

Read in batch

To improve the read speed of a group of registers or variables, you can create a custom assignment to read this set in a single command rather than one read command per register.

For each type of register or variable, a CreateBatchAssignment method allows you to create this custom assignment by specifying the list of variables or registers to read, or the range of data to read (start index and size).

Then, a Read() method on the returned object triggers the batch reading of this data.

// Create a batch read assignment
private NumericRegistersBatchAssignment _NumericRegistersBatchAssignment;
public void Setup()
{
_NumericRegistersBatchAssignment = _robot.Snpx.NumericRegisters.CreateBatchAssignment(NumericRegisterStartIndex, BlockSize);
}
public void ReadNumericRegisters()
{
float[] values = _NumericRegistersBatchAssignment.Read();
}

Acknowledge alarms

You can acknowledge alarms by using the ClearAlarms method.

Check if SNPX is available

By FTP, you can check if SNPX is available on the robot controller by checking the installed features.

// Get all installed features
Features features = _robot.Ftp.GetSummaryDiagnostic().Features;
// Check if SNPX is available
bool isSnpxAvailable = features.HasSnpx;

Demonstration

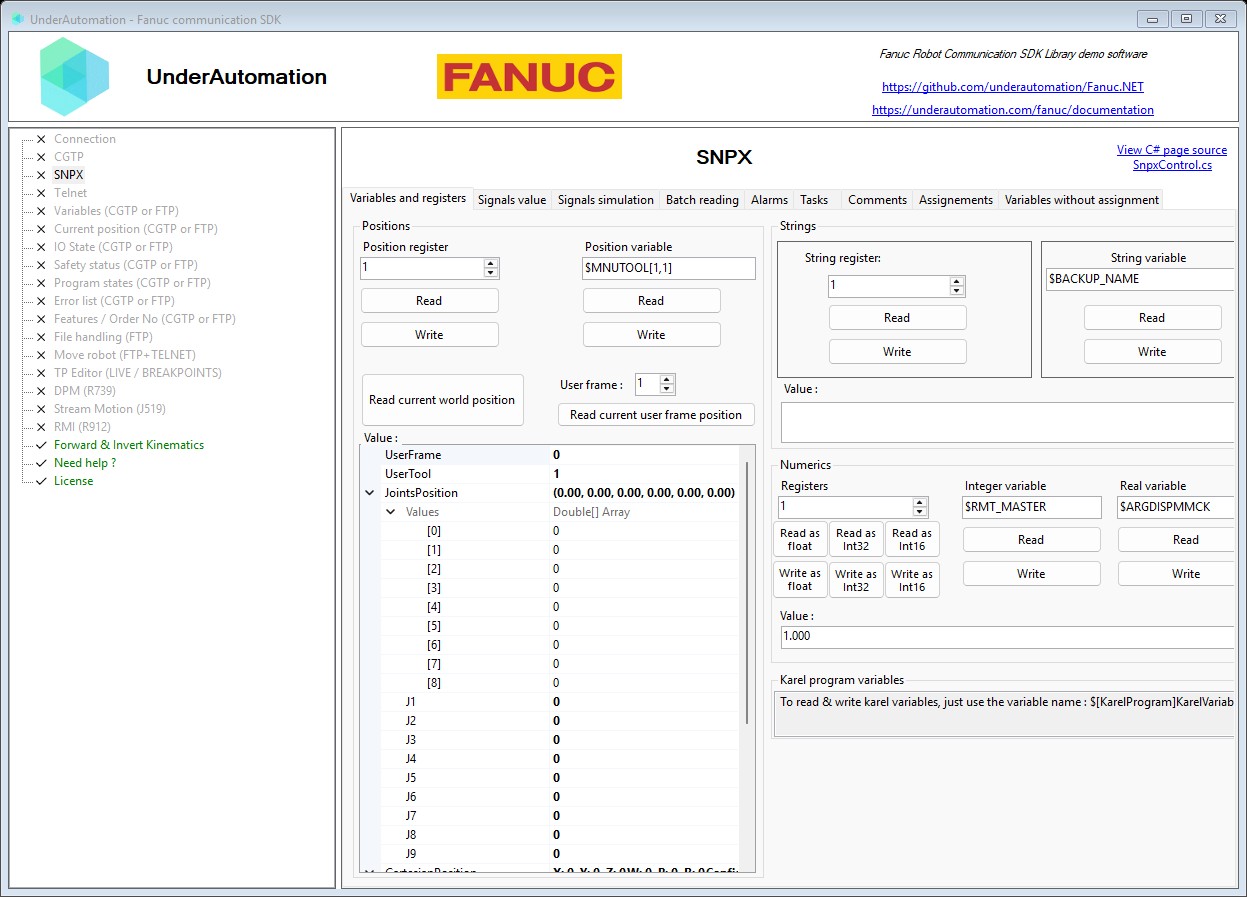

You can take a look at the Winforms Desktop project source which implements all these features. I can be downloaded here.

SNPX

API reference

Snpx Client

Members of Snpx.SnpxClient :
public class SnpxClient : SnpxClientBase {
public SnpxClient()
public void Connect(string ip, int port = 60008)
}
Members of Snpx.Internal.SnpxClientBase :
public class SnpxClientBase {
// Analog Inputs
public NumericIO AI { get; }
// Analog Outputs
public NumericIO AO { get; }
public void ClearAlarms()
public void ClearAssignments()
protected void ConnectInternal(string ip, int port = 60008)
public bool Connected { get; }
// List of all digital signal accessors (SDI, SDO, RDI, RDO, ...)
public DigitalSignals[] DigitalSignals { get; }
public void Disconnect()
// Group Inputs
public NumericIO GI { get; }
// Group Outputs
public NumericIO GO { get; }
public Assignment[] GetAssignments()
// Integer variables
public IntegerSystemVariables IntegerSystemVariables { get; }
public string Ip { get; }
// List of all Numeric IOs accessors (GI, GO, AI, AO, ...)
public NumericIO[] NumericIOs { get; }
// Number registers
public NumericRegisters NumericRegisters { get; }
// Programmable Machine Controller Data
public NumericIO PMC_D { get; }
// Programmable Machine Controller Constants
public DigitalSignals PMC_K { get; }
// Programmable Machine Controller Relays
public DigitalSignals PMC_R { get; }
// Position registers
public PositionRegisters PositionRegisters { get; }
// Position variables
public PositionSystemVariables PositionSystemVariables { get; }
// Remote Digital Inputs
public DigitalSignals RDI { get; }
// Remote Digital Outputs
public DigitalSignals RDO { get; }
// Safety Digital Inputs
public DigitalSignals SDI { get; }
// Safety Digital Outputs
public DigitalSignals SDO { get; }
// System Inputs
public DigitalSignals SI { get; }
// System Outputs
public DigitalSignals SO { get; }
// String registers
public StringRegisters StringRegisters { get; }
// String variables
public StringSystemVariables StringSystemVariables { get; }
// User Inputs
public DigitalSignals UI { get; }
// User Outputs
public DigitalSignals UO { get; }
// Weld Inputs
public DigitalSignals WI { get; }
// Weld Outputs
public DigitalSignals WO { get; }
// Weld System Inputs
public DigitalSignals WSI { get; }
}

Inputs and Outputs

Members of Snpx.Internal.DigitalSignals :
public class DigitalSignals : SnpxElements<bool, int> {
public override bool Read(int index)
public bool[] Read(int firstIndex, ushort count)
public SegmentName SegmentName { get; }
public SegmentOffset SegmentOffset { get; }
public SegmentSelector SegmentSelector { get; }
public void Write(int index, bool value)
public void Write(int firstIndex, bool[] values)
}
Members of Snpx.Internal.NumericIO :
public class NumericIO : SnpxElements<ushort, int> {
public override ushort Read(int index)
public ushort[] Read(int firstIndex, ushort count)
public SegmentName SegmentName { get; }
public SegmentOffset SegmentOffset { get; }
public SegmentSelector SegmentSelector { get; }
public void Write(int index, ushort value)
public void Write(int firstIndex, ushort[] values)
}

Registers

Members of Snpx.Internal.NumericRegisters :
public class NumericRegisters : SnpxWritableAssignableElements<float, int> {
protected override int AssignmentSize { get; }
protected override string GetAssignmentName(int index)
protected override string GetAssignmentTarget(int index)
protected override float ReadFromClient(int offset)
protected override void WriteInClient(int offset, float value)
}
Members of Snpx.Internal.PositionRegisters :
public class PositionRegisters : SnpxWritableAssignableElements<Position, int> {
protected override int AssignmentSize { get; }
protected override string GetAssignmentName(int index)
protected override string GetAssignmentTarget(int index)
protected override Position ReadFromClient(int offset)
protected override void WriteInClient(int offset, Position value)
}

Position

Members of Common.Position :
public class Position {
public Position()
public ExtendedCartesianPosition CartesianPosition { get; set; }
public JointsPosition JointsPosition { get; set; }
public short UserFrame { get; set; }
public short UserTool { get; set; }
}
Members of Common.JointsPosition :
public class JointsPosition {
public JointsPosition()
// Joint 1 in degrees
public double J1 { get; set; }
// Joint 2 in degrees
public double J2 { get; set; }
// Joint 3 in degrees
public double J3 { get; set; }
// Joint 4 in degrees
public double J4 { get; set; }
// Joint 5 in degrees
public double J5 { get; set; }
// Joint 6 in degrees
public double J6 { get; set; }
// Joint 7 in degrees
public double J7 { get; set; }
// Joint 8 in degrees
public double J8 { get; set; }
// Joint 9 in degrees
public double J9 { get; set; }
public override string ToString()
// Numeric values for each joints
public double[] Values { get; }
}
Members of Common.ExtendedCartesianPosition :
public class ExtendedCartesianPosition : CartesianPosition {
public ExtendedCartesianPosition()
public double E1 { get; set; }
public double E2 { get; set; }
public double E3 { get; set; }
public short T4 { get; set; }
public short T5 { get; set; }
public short T6 { get; set; }
}
Members of Common.CartesianPosition :
public class CartesianPosition : XYZPosition {
public CartesianPosition()
// Position configuration
public Configuration Configuration { get; }
// P rotation in degrees
public double P { get; set; }
// R rotation in degrees
public double R { get; set; }
// W rotation in degrees
public double W { get; set; }
}
Members of Common.XYZPosition :
public class XYZPosition {
public XYZPosition()
// X coordinate in meters
public double X { get; set; }
// Y coordinate in meters
public double Y { get; set; }
// Z coordinate in meters
public double Z { get; set; }
}

Variables

Members of Snpx.Internal.PositionSystemVariables :
public class PositionSystemVariables : SnpxWritableAssignableElements<Position, string> {
protected override int AssignmentSize { get; }
protected override string GetAssignmentName(string index)
protected override string GetAssignmentTarget(string index)
protected override Position ReadFromClient(int offset)
protected override void WriteInClient(int offset, Position value)
}
Members of Snpx.Internal.StringRegisters :
public class StringRegisters : SnpxWritableAssignableElements<string, int> {
protected override int AssignmentSize { get; }
protected override string GetAssignmentName(int index)
protected override string GetAssignmentTarget(int index)
protected override string ReadFromClient(int offset)
protected override void WriteInClient(int offset, string value)
}
Members of Snpx.Internal.StringSystemVariables :
public class StringSystemVariables : SnpxWritableAssignableElements<string, string> {
protected override int AssignmentSize { get; }
protected override string GetAssignmentName(string index)
protected override string GetAssignmentTarget(string index)
protected override string ReadFromClient(int offset)
protected override void WriteInClient(int offset, string value)
}

Integrieren Sie problemlos Universal Robots-, Fanuc-, Yaskawa- oder Staubli-Roboter in Ihre .NET-, Python-, LabVIEW- oder Matlab-Anwendungen

UnderAutomation
KontaktPreise • VertriebspartnerAngebot • BestellungLegal

© All rights reserved.
